Attention, due to the poor availability of individual components, please email me first and ask if the kits are available. After 10 years without a price increase, I am unfortunately forced to adjust the prices as some components have become twice to three times as expensive. An example is the LM 13700. Before 1,20 € now 3,60 €.

BUY from TubeOhm , how it works

If you live outside the EU  please contact me directly about the price/shipping/tax

Warenkorb ansehen /view chart

NEWS

 out now on TubeOhm.com - !  Contact :  Kontakt@tubeohm.com

 eurorack modul DIY kit

NEW

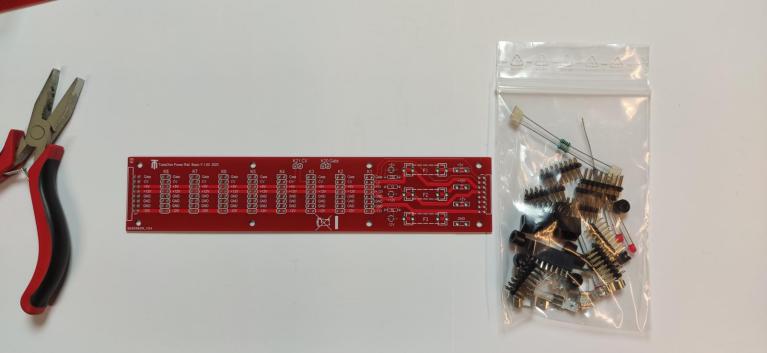

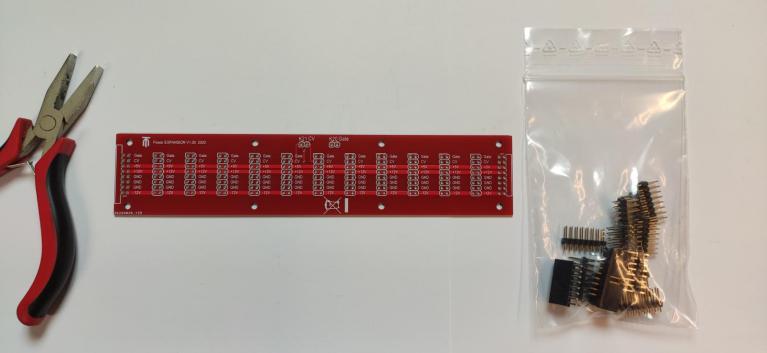

POWER RAIL BASIC

Power RAIL EXPANSION

POWER RAIL



contains

  • pcb,
  • all electronic/mech parts

Price 1:) KIT BASIC and EXPANSION  18,95 € include 19%TAX  plus shipping costs 8,90 € , total 27,85 €

Price 2:) only BASIC POWER RAIL 14,95 €  include 19%TAX plus shipping costs 8,90 € is total 23,85 €

Price 3:) only EXPANSION POWER RAIL 9,90 € include 19%TAX plus shippinmg costs 8,90 ist total  18,80 €

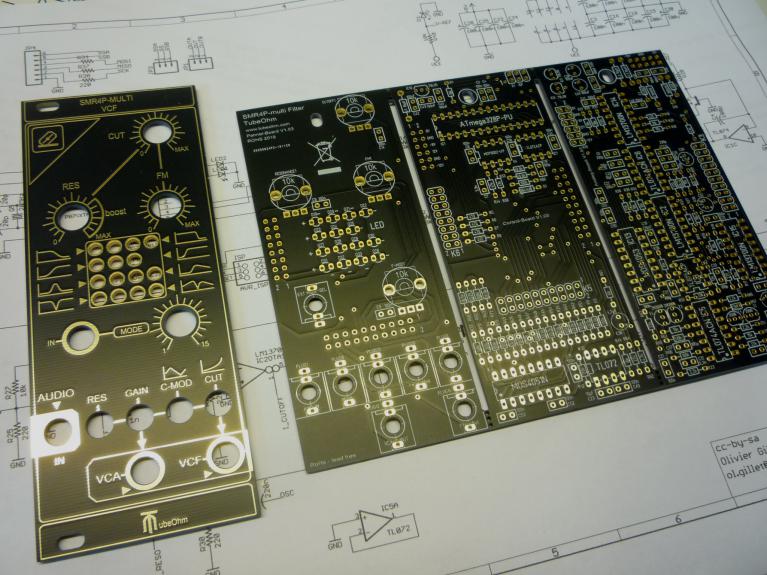

SMR4P-multi  VCF eurorack modul DIY kit

DIY manual , click here:

SMR4P-multi DIY kit complete

black edition



contains

  • pcb's,
  • pannel
  • all electronic/mech parts
  • cable

Price 149 € include 19%Tax

plus shipping costs 8,90 €

Total 157,90 €

Small SMR4P-multi DIY kit

black edition

contains

  • pcb's,
  • frontpannel  (PCB black/gold)
  • preproged Atmega 328



Price 59 € include 19%Tax

plus shipping costs 8,90 €

Tolal 67,90 €

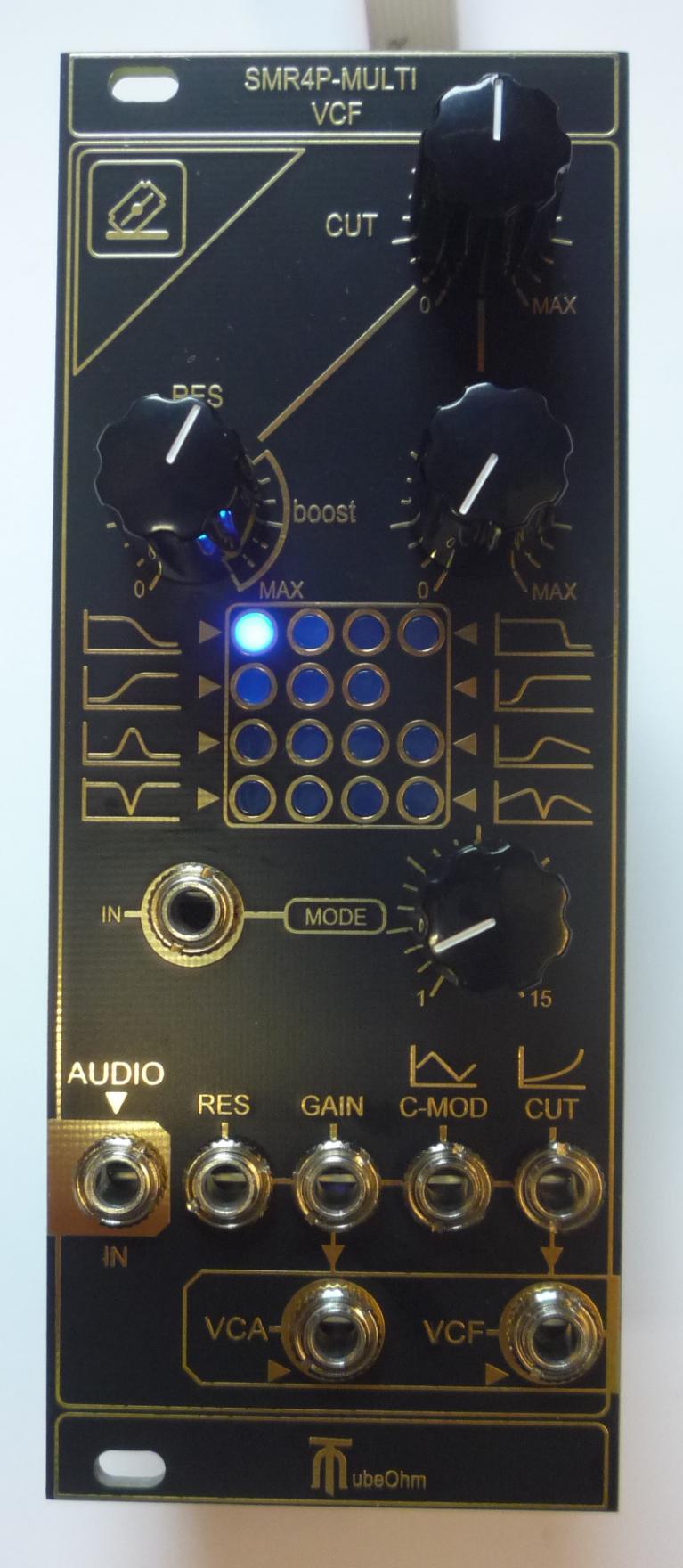

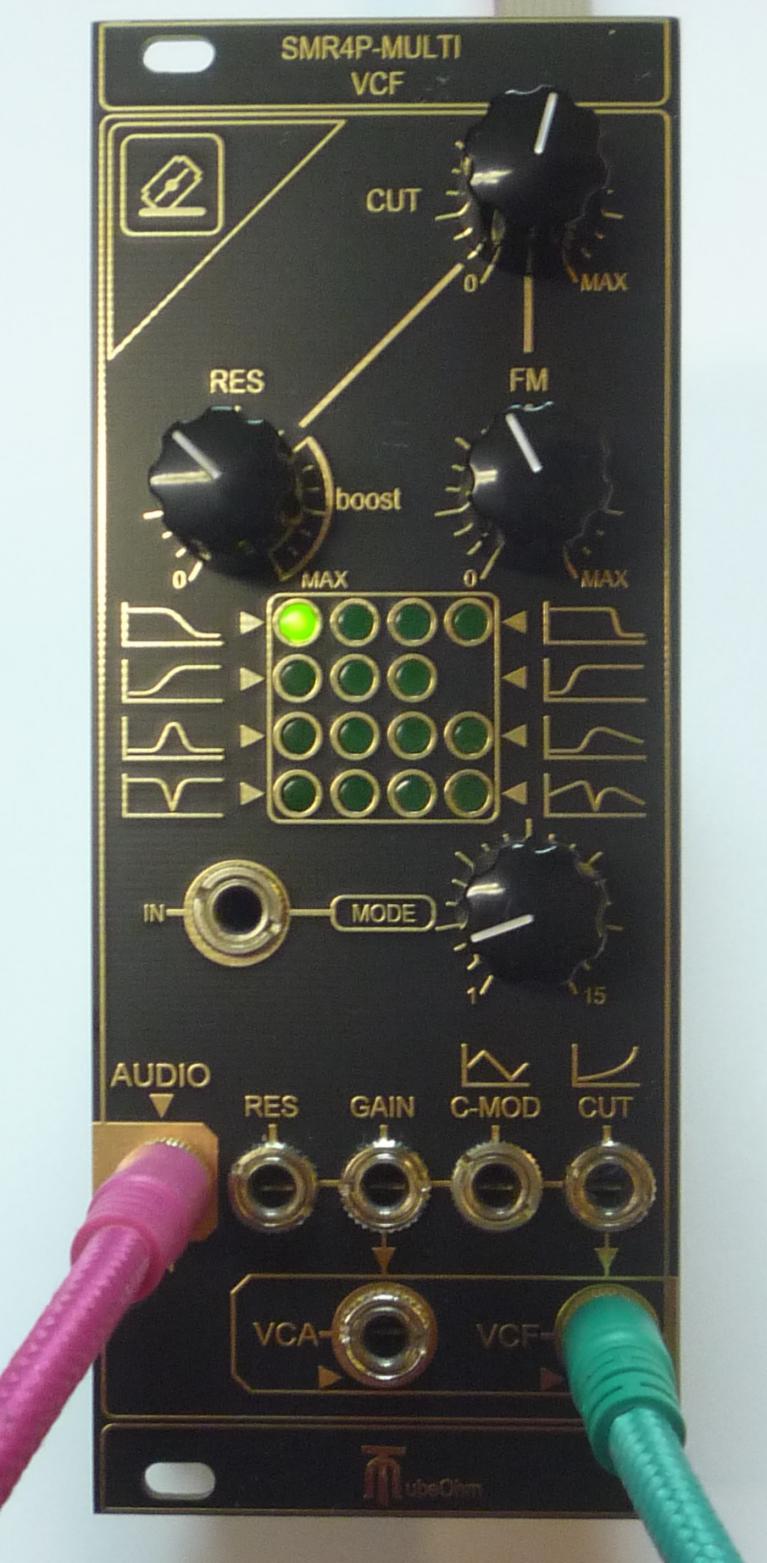

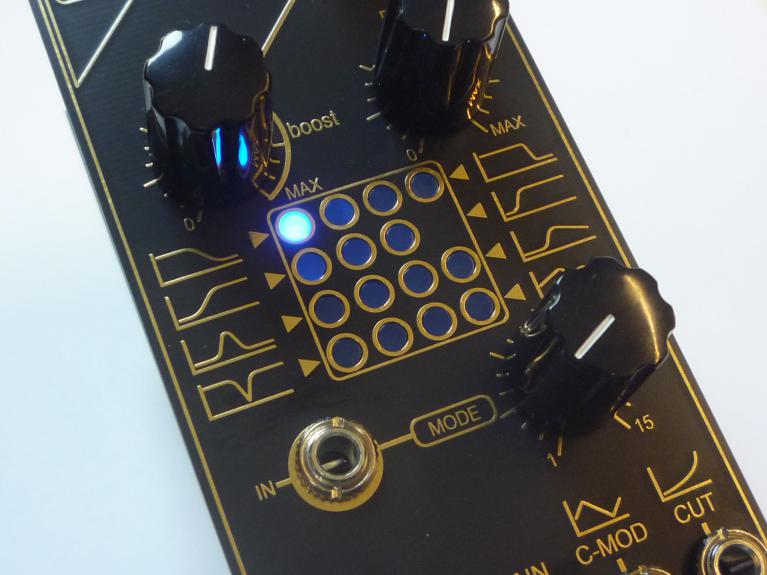

ready build :SMR4P-multi  VCF eurorack modul SPECIAL EDITION black n' blue

SMR4P-multi  ready build on request !

black/blue/green/red edition

Choose  your LED color , available  in red, green and blue

Contact me  direct on : Kontakt@tubeohm.com

on request and special build for you .



Price 189 € include 19%Tax

plus shipping costs 8,90 €

Total 197,90 €



Attention, no return because it is specially built on request.

Production time approx. 1 week

Shruthi / Phoenix DIY kits, filterboards and PCB's

DIY manual , click here:

Shruthi V2 complete DIY kit

all you need to build the classic Shruthi

The Shruthi V2 complete kit includes

1) SMR4MK2 filterboard with all electrical and mechanical parts.

2) The V2 motherboard with all electrical and mechanical parts, a pre-programmed CPU and an EE-Prom with 128 sounds.

3) The V2 case made of clear Plexi glass



Not included in the kit is a 9V 600 mA power supply, centre positive.

This must be purchased separately.



The motherboard V2 is 100% compatible in function and form with the standard Shruthi motherboard and all available filter boards. It has been extended by four CV in.

Modulation destinations can be selected in the modulation matrix and controlled with a voltage. The additional CV inputs are protected against overvoltage and negative voltage.

The Shruthi Case V2

After some consideration, the case was also redesigned.

It is now much more stable, has an on/off switch and a protective LCD glass.



The protective glass prevents dust from settling on the LCD. Scratches are now also avoided.

Price Motherboard V2 complete + SMR4MK2 Filterboard complete

+ Case V2= 214,90 € inc 19%TAX

plus shipping costs 12,90 € total 227,80 €

Phoenix with CD 4069 Filter

complete DIY kit

The complete CD 4069 KIT includes:

1:) the motherboard/PCB , all electronic and mechanical parts, a pre-programmed Atmega , an EE-Prom with 128 sounds,LCD, ICs, Resistors,capacitors, screws and spacers for the case



2:) the filterboard/PCB , all electronic parts



3:) the yellow case with E/A switch, rubber feet



*** does not include power supply .

 Phoenix needs a power supply 9V 600 mA , 5,5-2,1 center positive



Single price MOBO =99,00 Euro, CD4069 Filter=75,00 Euro, Case is 36 euro /all inc 19%Tax

Total 210 €, Shipping  8,90 €

Price Mobo V2 + CD4069 Filter + Case V2 = 214,90 € inc 19%TAX

plus shipping costs 12,90 € total 227,80 €

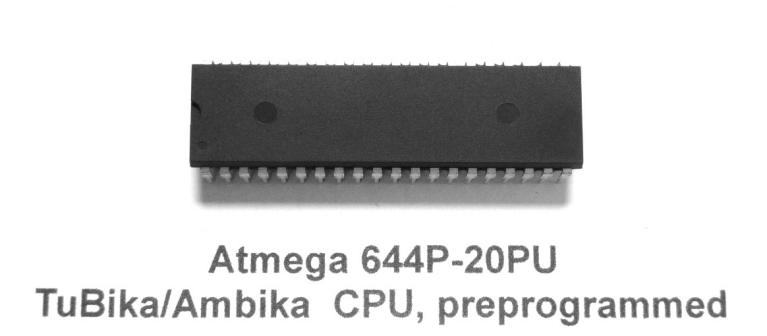

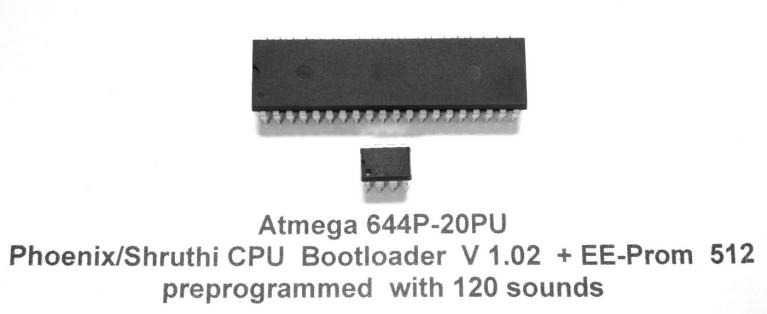

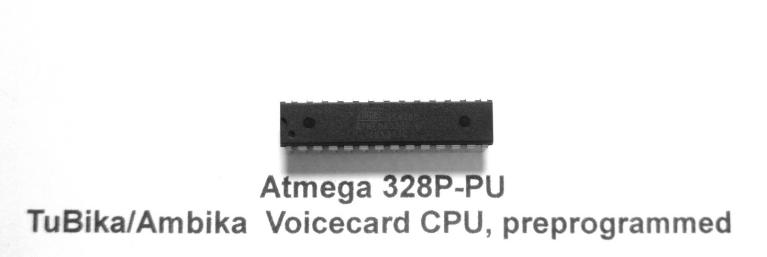

Sparepart: CPU for Shruthi/Phoenix and also a 512 Kb EE-Prom with the original Shruthi sounds

You get a  Atmega 644p-20 PU  CPU with the latest Firmware V 1.02 for Shruthi/Phoenix  and the Shruthi/Phoenix XT version ( attention , the latest firmware is not shown while  power the  Shruthi/Phoenix on. Look please in the MI forum !).

The EE-Prom contains  round about 120 preprogrammed Sounds.

The price for the CPU +EE-Prom is 18 €  include 19%Tax .

plus 8,90 euro shipping .  Total  costs 26,90 €

On Stock 19.05.22

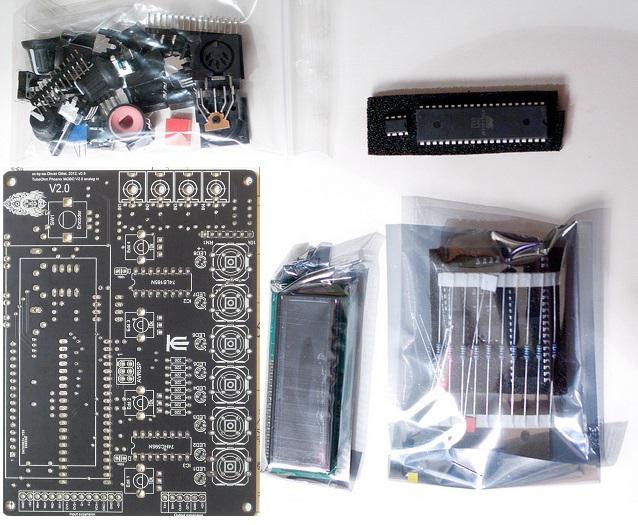

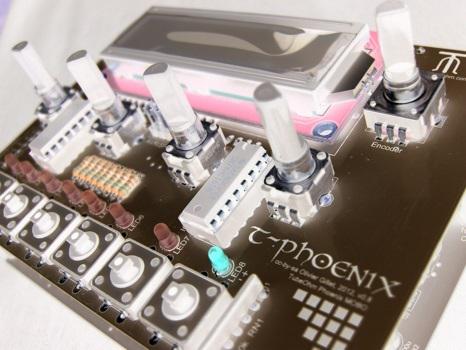

Phoenix  motherboard-V2 complete DIY kit

Differences between Phoenix Motherboard Version V 1 and V 2

On the V2 motherboard, only the CV inputs were buffered via an opamp.  This prevents too high analogue input voltages from causing damage. Version V2 is 100% compatible with V1. You 'CAN' add the CV inputs, but you don't must do.The V2 version has the same functionality / dimensions as the motherboard V1.

NEW: Phoenix motherboard V2 DIY kit

complete motherboard kit, without a filterboard / case

contains

  • Phoenix  V2 PCB  , 4x CV in,
  • all electronic/mech part
  • presoldered MCP 6004  / all parts for CV in
  • include all parts like  CPU, EE-Prom  with 120 sounds, switches, capacitors, resistors.
  • LCD yellow / black chars / LED yellow
  • all you need to build the complete  motherboard

  **** needs a power supply and a voicecard to work

The price for the CPU +EE-Prom is 99 €  include 19%Tax .

plus 8,90 euro shipping.  Total  costs 107,90 €

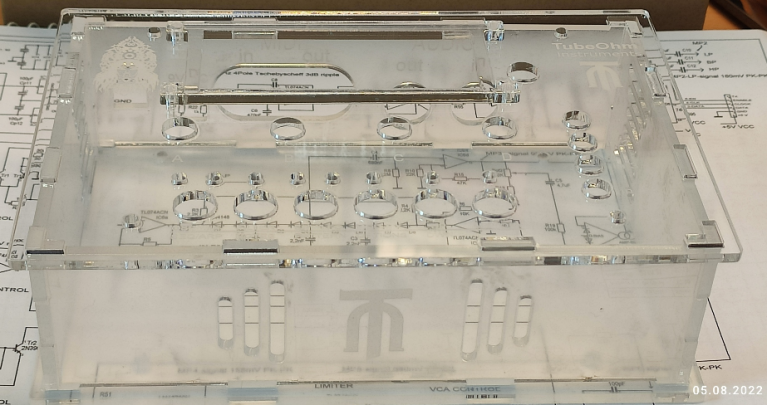

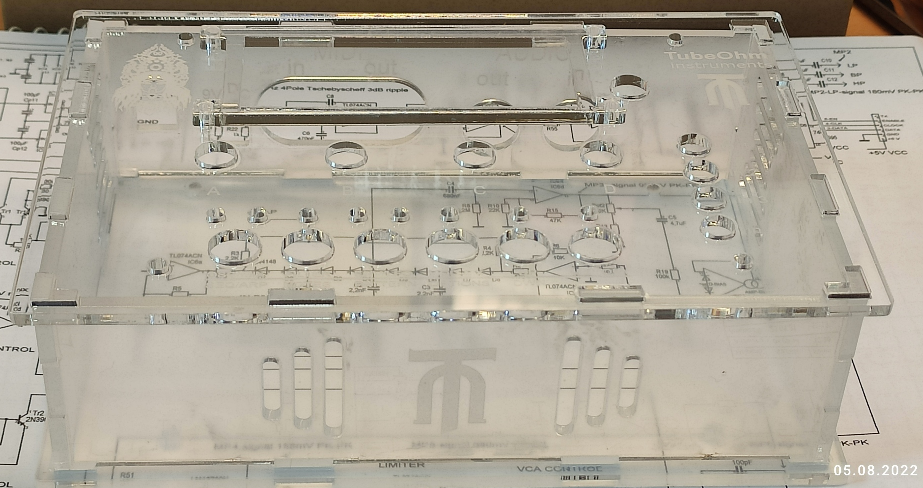

Case V2  for Shruthi V2

NEW: Phoenix V2 Case for  the V2 Motherboard



Matching the new case for the motherboard V 2. It now has an on/off switch and a protective glass for the LCD display.  This Case is only for the motherboard V2

individual circuit boards / complete kits

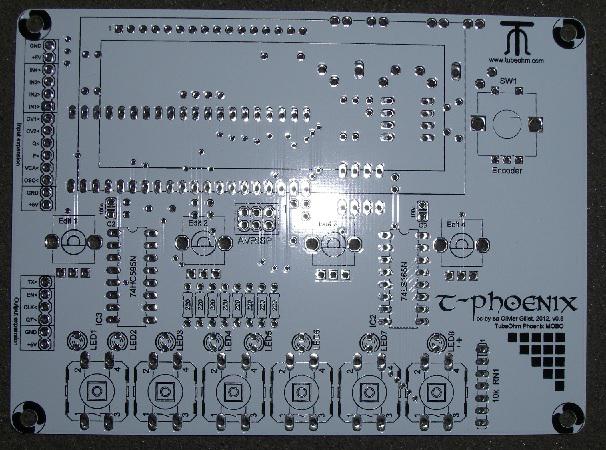

NEW: Phoenix  PCB V2 motherboard

The Phoenix V2 motherboard replaces the V1 motherboard. It can be fitted with the same components as the V1 motherboard and can also be installed in all cases without any problems.  'CV in' can - but does not have to - be installed.

contains

  • Phoenix  V2  PCB only
  • black version

Attention , if you want to use the CV in

you had to buy  the extention kit.

The MCP 6004 is than soldered on the PCB !

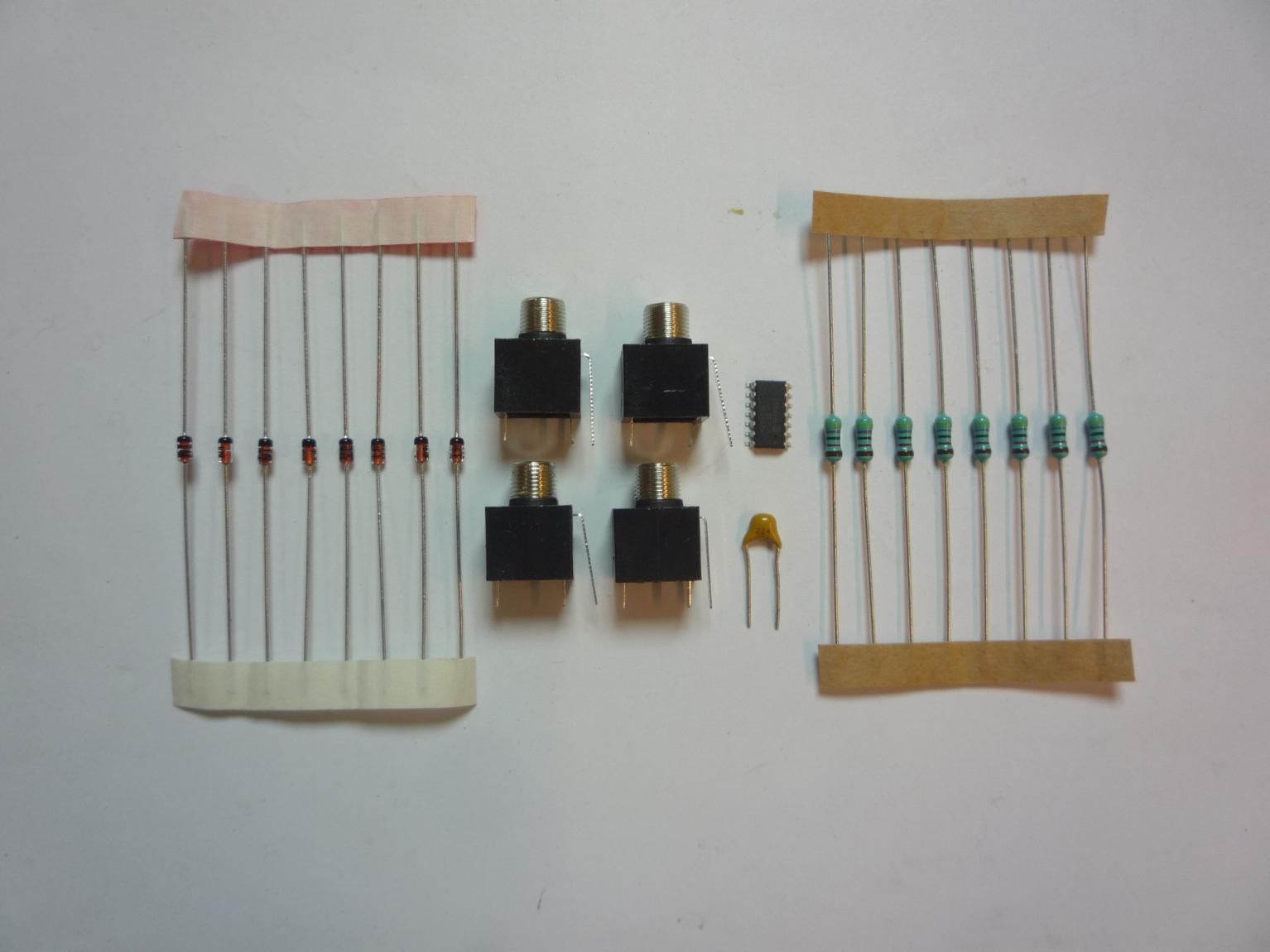

Phoenix V2 CV in extention Kit

only for the V2 motherboard



contains

  • 4x3,5mm   jacks
  • diode
  • resistor
  • MCP 6004 SMD/SMT
  • Cap

Price 9,90€ include19%Tax

plus shipping costs 8,90 €

Total 16,80 €

Phoenix  PCB V1 motherboard  /  obsolete



contains

  • Phoenix  V1 XT PCB only,
  • The Phoenix V2 motherboard replaces the V1 motherboard. It can be fitted with the same components as the V1 motherboard and can also be installed in all cases without any problems.  'CV in' can - but does not have to - be installed.

 Please order  the V2 motherboard .

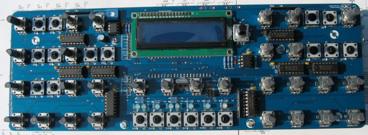

Phoenix XT motherboard / PCB

Phoenix XT motherboard  DIY kit-

this is only the motherboard with all Parts,

without  the voicecard



contains

  • Phoenix XT PCB,
  • all electronic/mech part
  • include all pots,knops, switches,  caps for the switches
  • all you need to build the complete XT motherboard

needs a power supply, a case and  a voicecard to work

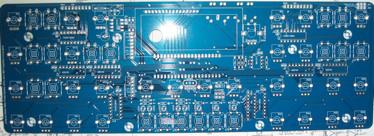

Phoenix XT PCB motherboard



contains

  • Phoenic XT PCB only,

Phoenix/Shruthi Filterboards + PCB

NEW-: Shruthi-1/Phoenix CD4069 Filterboard  Kit



NEW-: Shruthi-1/Phoenix CD4069 Filterboard PCB

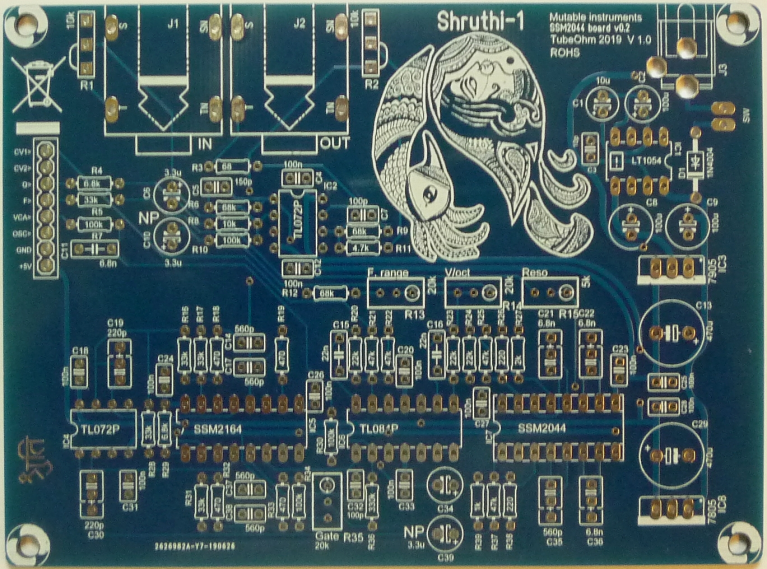

NEW-the Legend: Shruthi-1/Phoenix SSM2044 Filterboard

available as PCB

SMR4MK2



c

SMR4MK2

YELLOW-MAGIC



Yellow Magic

DUAL VCF



Dual VCF

Stereo Filter VCF



Stereo Filter

4 Pole Mission VCF



4 Pole Mission

Polivoks VCF



Polivoks

Ladder VCF



Ladder Filter + rare parts

Shruthacon VCF



Shruthacon VCF

TuBika DIY kit, filterboards and PCB's

(formally known as  Ambika from Mutable Instruments)



DIY manual , click here:

all parts, filterboards, motherboard and the CPU's/Firmware are compatible to Ambika

Attention, Tubika /Ambika requires an AC/AC 9 volt  1,5...2A power supply. This is hard to find !

Tubika/Ambika also needs an older SD Ram card with 512 MB or 1 GB to store or load the sounds. I had success with a micro SD card 4GB with adapter from Sandisc. Some other 4GB SD Ram cards did not work ! So it can be a try and error with newer SD cards .

An SD Ram card and a power supply are not included in the kit and it is up to the buyer to get them.

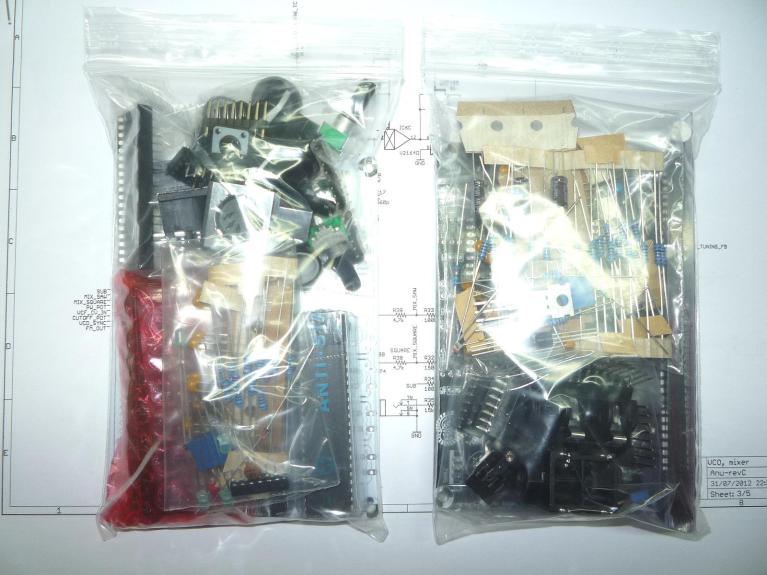

TuBika complete DIY kit -electronic ,



all el.parts ,

one Motherboard, 6xSMR4-Plus, preproged ATMELS, resistors , capacitors,

blue LCD, knops, buttons spacer





Outside EU-contact us direct







** Without Case, Pwr supply , SD ram card

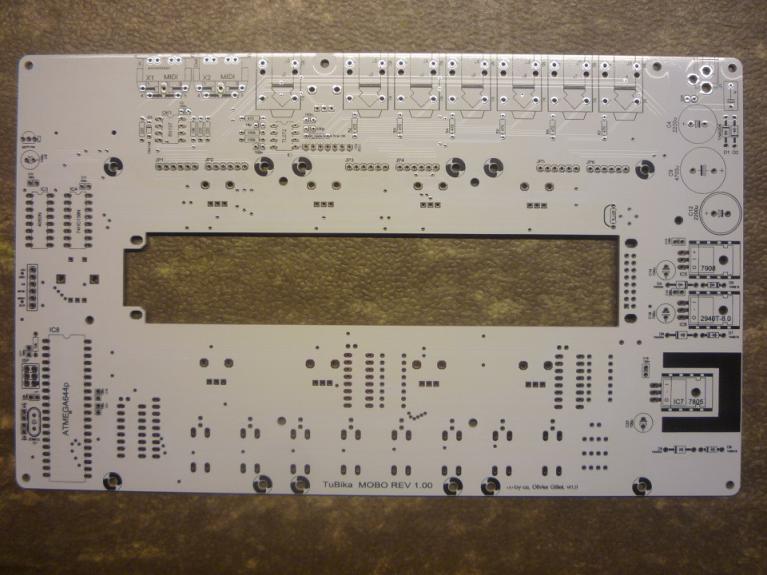

TuBika Motherboard ,

Attention, as the prices of the ATMEGA CPUs are constantly changing, please contact me beforehand to see if I can

still keep the displayed prices.

Contact me  before you buy 23.05.22

Attention, as the prices of the ATMEGA CPUs are constantly changing, please contact me beforehand to see if I can

still keep the displayed prices.

Contact me before you buy 23.05.22

TuBika filterboards

TuBika filterboard SMR4-Plus

TuBika filterboard SMR4-Plus

TuBika filterboard P4

TuBika filterboard P4

TuBika filterboard SVF

TuBika filterboard SVF

TuBika filterboard LADDER

TuBika filterboard LADDER

TuBika PLEXIGLAS CASE

TuBika metall CASE

the manufacturer is Adrian Hallig - feel free to contact him per mail



Contact the Manufacturer
