Attention , unfortunately TubeOhm is currently not able to ship goods to the UK due to tax reasons.



Reseller for Jeannie  and Eurorack modules in EU  and for UK is Exploding Shed:

https://www.exploding-shed.com/diy-kits-overview/diy-kits/



Reseller for eurorack modules UK is Thonk:

https://www.thonk.co.uk/brand/tubeohm/



Amazona Test Jeannie:https://www.amazona.de/test-tubeohm-jeannie-diy-synthesizer/

Test Firmware V3:https://www.amazona.de/tubeohm-jeannie-3-01-firmware-update/

Info:https://www.amazona.de/tubeohm-jeannie-8-stimmiger-diy-synthesizer/

Warenkorb ansehen /view chart

On our own account.

The sourcing of components is becoming much more difficult and prices are skyrocketing.

Currently, the procurement of the Teensy CPU is a big problem for us. Even if you get them the prices have more than doubled from 24 € to 40..50 €.

Therefore, there is now for people who still have a Teensy 4.1 lying around at home the complete kit either with or without the Teensy 4.1.

Please read :

there are four variants of the DIY kit for Jeannie.

1:) KIT 1:only the boards , the EE-Prom and the LCD Display

2:) KIT 2 SMD:the boards already assembled with all SMT components and also the FV-1 FX chip, the EE-Prom and the LCD display

3:) KIT 3 NC: a complete kit with all components but without the case *** if you want to build your own case !

4:) KIT 3 COMPLETE: a complete kit with all components and the case. All you need  to build Jeannie .

**additional you need a power supply 12 V 1 A and a micro SD card.

 TubeOhm, the  Synth 'Jeannie'   8 Voice poly  DIY kits

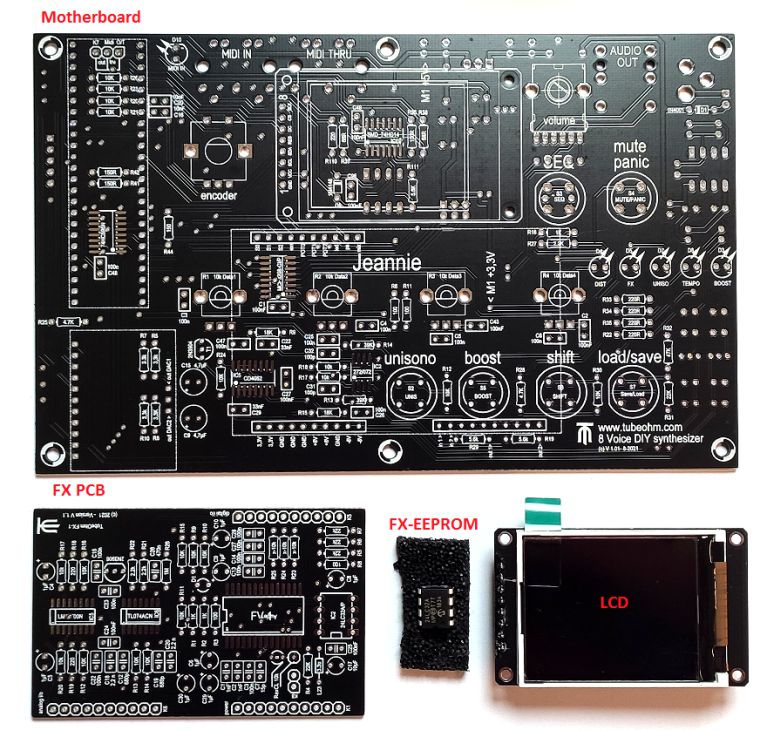

Kit 1 contains:  Motherboard PCB, FX PCB, the LCD and the preproged EE-Prom for the FX

This for experts . You need to source all parts yourselfe. SMD soldering required

DIY KIT Jeannie-1

contains:

  • Motherboard PCB
  • FX PCB
  • LCD
  • FX-EE-Prom pre-programmed









Add Jeannie PCB  Kit to chart



Price 63,90 €  . inc EU TAX

Shipping is 8,90 € inc EU TAX

Total 72,80€ Inc EU Tax

on stock

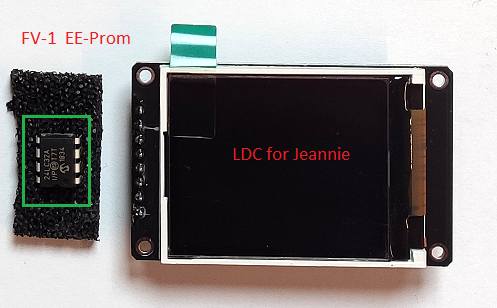

For special builders who build Jeannie without a PCB, the LCD and the EE-Prom is now available seperately.





Please note that other displays may not work properly. You need the original Jeannie display.



As we buy the displays in quantity to match the kits, only a limited number is available.

Please contact me directly. (kontakt(at)tubeohm.com



The price for the LCD an + EE-Prom is 25€ inc Tax  plus 8,90 € shipping.

Total 33,90 €

on stock

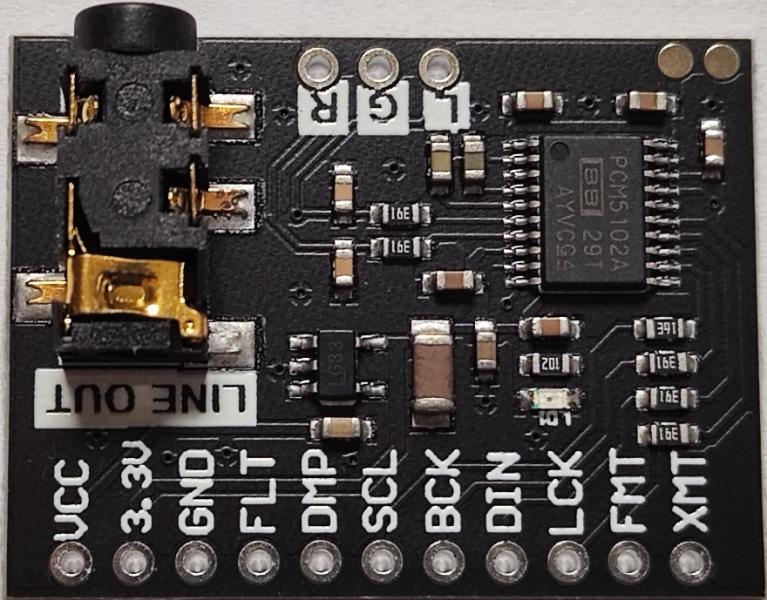

PCM 5102A D/A converter



digital analogue converter for Jeannie.

The DA converter works stereo and with up to 24 bits.

PCM 5102A.

It is used to convert the digital stereo audio stream in the Jeannie.



Price is 15,90 € inclusive  your country tax.

Shipping is 8,90 €

Total 24,80 €

on stock

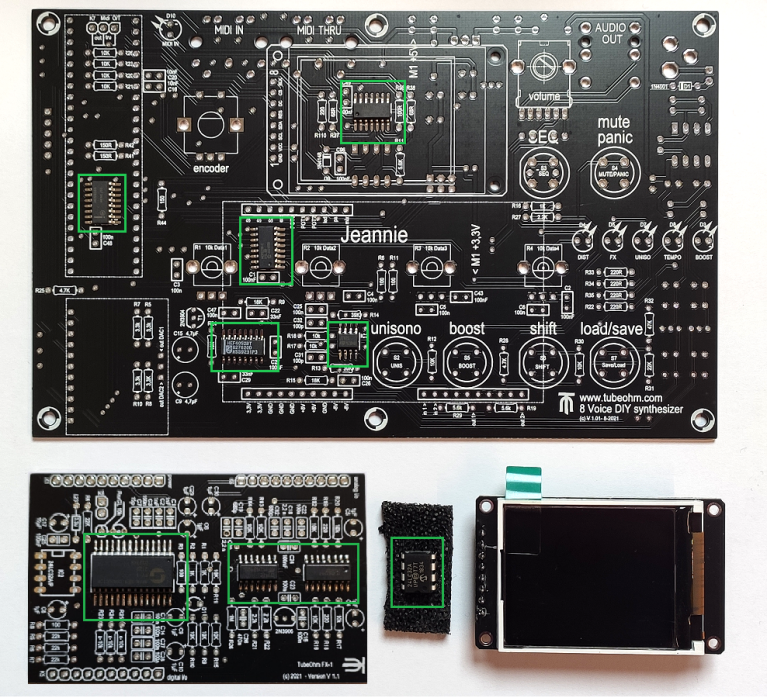

Kit 2 contains:  Motherboard PCB, presoldered MCP3208, TL072, 74HC595,CMOS 4052, HC14, 3.3 Volt Voltage regulator.

FX PCB  with presoldered TL 074, LM 13700 and the FV-1 effect chip  !!

LCD and the pre-programmed EE-Prom for the FX

move the mouse over the picture

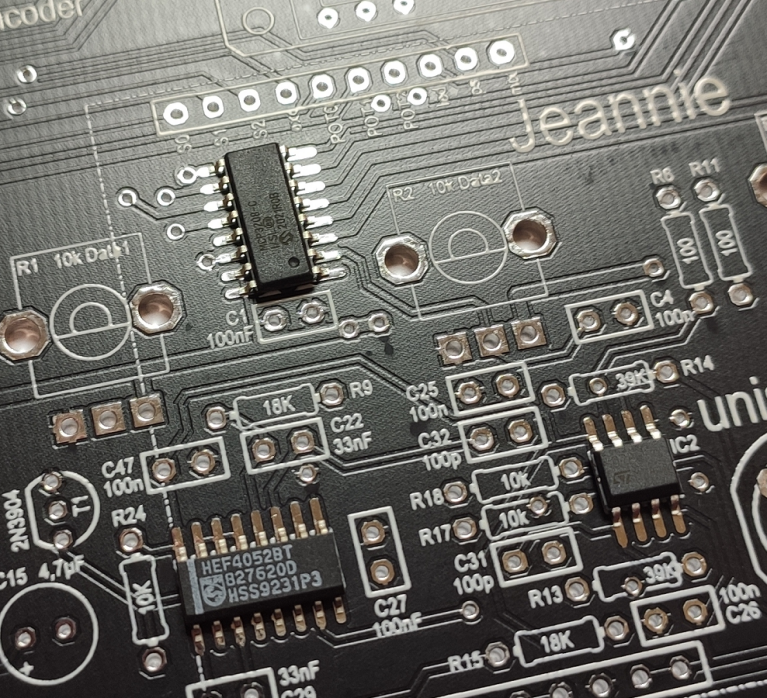

DIY KIT Jeannie-2 SMD

contains:

Attention , new price . Now with soldered FV-1 FX chip

  • Motherboard PCB,  all SMD ICs pre-soldered - SMD regulator presoldered
  • FX PCB  TL 074 and LM 13700  and FV-1 presoldered .
  • LCD
  • FX-EE-Prom pre-programmed













Add Jeannie PCB-SMD  Kit to chart





Price 110,90  inclusive  your country tax.

Shipping is 8,90 € inclusive  your country tax.

Total 119,80 € inclusive  your country tax.

on stock

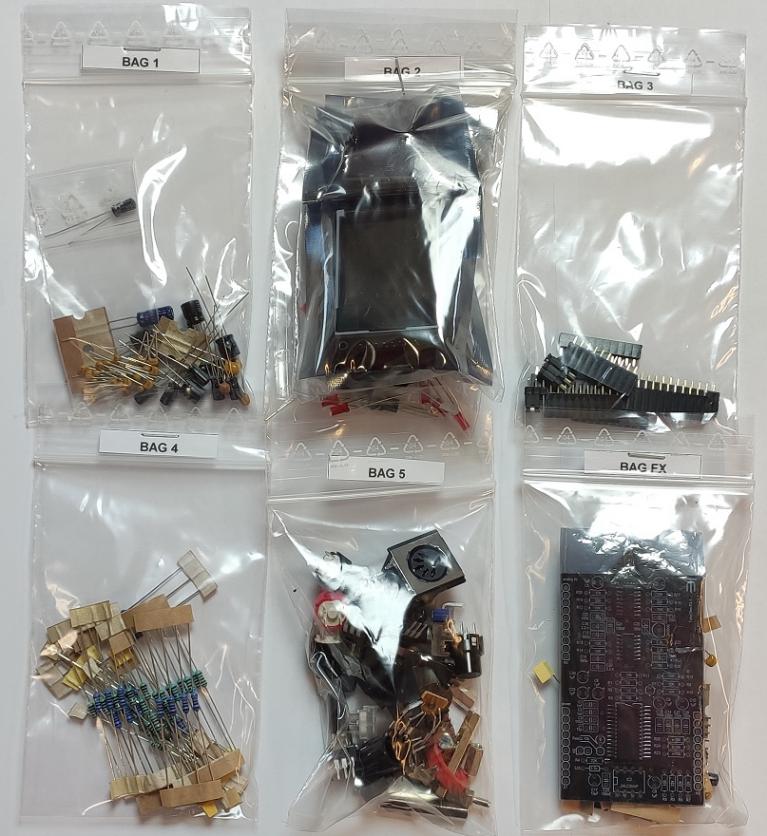

  • Full Kit 3NC (no case) with all parts like resistors, switches, pots, caps
  • FX pcb  with all parts include the FV-1
  • Pre-soldered SMT parts on the FX PCBs  and the main PCB
  • Attention , no case include

DIY KIT Jeannie-3 NC (no case)

For people who want to build their own case there is now the complete kit without the case.

Jeannie-3 NC (no case) contains:

  • Motherboard PCB,  all SMD pre-soldered - SMD regulator presoldered
  • all ICs and FV-1 presoldered
  • LCD
  • FX-EE-Prom pre-programmed
  • all parts you need to build  the Jeannie, but  attention , no case include
  • Teensy 4.1    with the latest Jeannie firmware and 5V cut
  • PCM 5102A include

Attention, power supply and SD card is not include.

For the power supply you need a DC 12 V - 1 A minimum

For the SD Card you need  8 or 16 GB micro SD Card  - nothing special





















Add Jeannie Kit 3 no case Kit to chart



Jeannie Kit 3 no case Price is  279,00  inclusive  your country tax.

Shipping is 12,90 € inclusive  your country tax.



Total 291,90 € inclusive  your country tax.

on stock,  shipping within 1 week

  • Full Kit 3 with all parts like resistors, switches, pots, caps
  • FX pcb  with all parts include the FV-1
  • Pre-soldered SMT parts on the FX PCBs  and the main PCB
  • Case  include

DIY KIT Jeannie-3 complete

contains:

  • Motherboard PCB,  all SMD pre-soldered - SMD regulator presoldered
  • all ICs and FV-1 presoldered
  • LCD
  • FX-EE-Prom pre-programmed
  • all parts you need to build  the Jeannie
  • Case  blue transparent-black
  • Teensy 4.1    with the latest Jeannie firmware and 5V cut
  • PCM 5102A include



Attention, power supply and SD card is not include.

For the power supply you need a DC 12 V - 1 A minimum

For the SD Card you need  8 or 16 GB micro SD Card  - nothing special

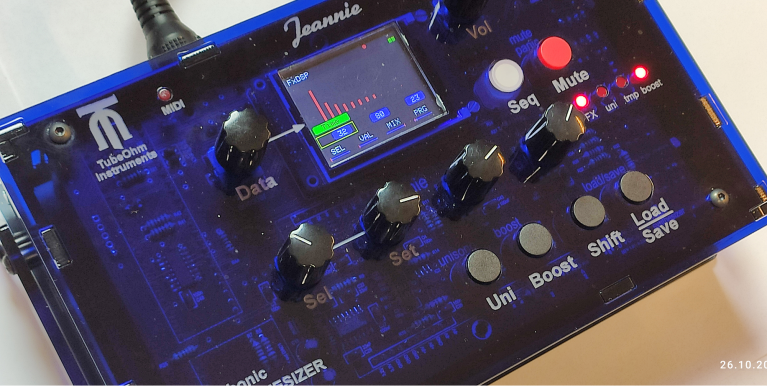

When it is finished it looks like this .

Add Jeannie Kit 3 full SMD  Kit to chart /



Price 319,00  inclusive  your country tax. ****

Shipping is 12,90 € inclusive  your country tax.



Total 331,90 € inclusive  your country tax.

out of stock

Jeannie Kit full is a complete kit include all parts  and the Teensy 4.1 board

README

If you have a Teensy 4.1 board then you can buy the Jeannie Kit 3 without the Teensy CPU board. This reduces the price of the kit for you by 40 €.



279,00€  Kit 3 No teensy plus shipping 12,90 €

Total  291,90 €

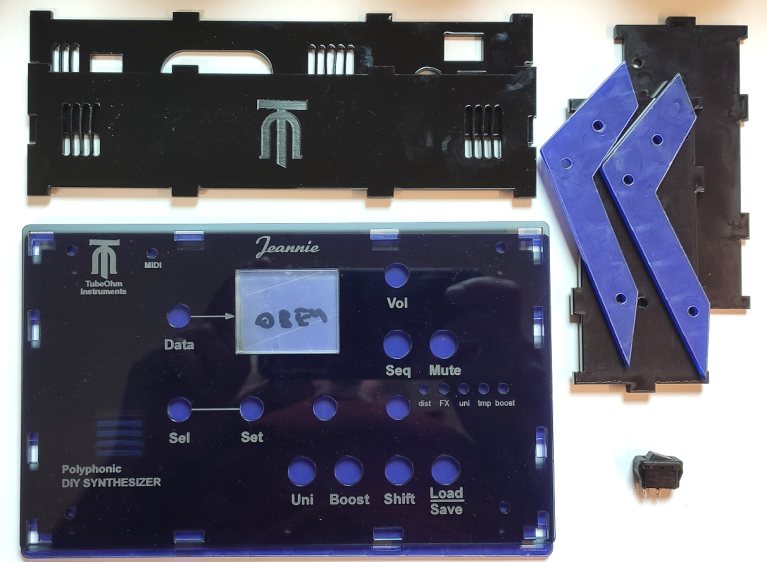

Jeannie Case kit  blue

contains:

  • the Case
  • screws,nuts, on/off switch
  • Attention , the protective film must be removed before assembly.













Price 43,95 €  inclusive  your country tax.

Shipping is 8.90 €

Total 52,85 €



Add Jeannie Case Kit to chart

out of stock
