Penrose  Quantiser

Overview

Attention, available is Penrose now with the black panel, only with the black panel !



Penrose is a simple CV quantizer DIY kit for the eurorack format. It takes an incoming continuous CV voltage and converts it to the nearest note in a scale. Active notes can be selected with the 12 buttons. You can use it to tune the output of your analog sequencer, as a semi random melody generator, for fast chiptune arpeggios and much more.



Penrose complete kit

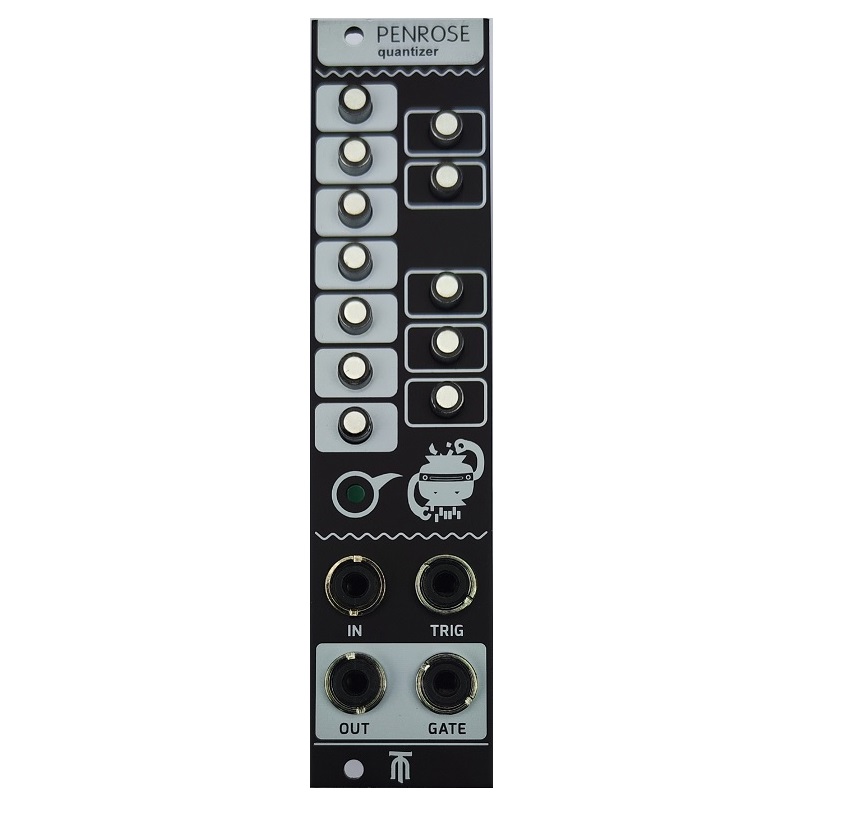

It comes as a complete kit with all needed parts to build it. That includes a black/white aluminum frontpanel, high quality jacks and illuminated bi-color push buttons.



News: from now on there will be a 'small Penrose kit' in addition to the complete Penrose DIY kit.

This contains :

1) 12 buttons

2) a pre-programmed CPU

3) the front panel made of aluminium, currently black anodized

4) a set of circuit boards



Specs

Current draw: +12V 60mA | -12V 2.5mA

Width: 6HP Depth: 40mm

CV input voltage: 0-10V

CV output voltage: 0-10V



More information



Manual



Assembly guide

mounting the panel with the spacer together



Schematics



BOM



BOM - small kit

Buy it , go to the shop
